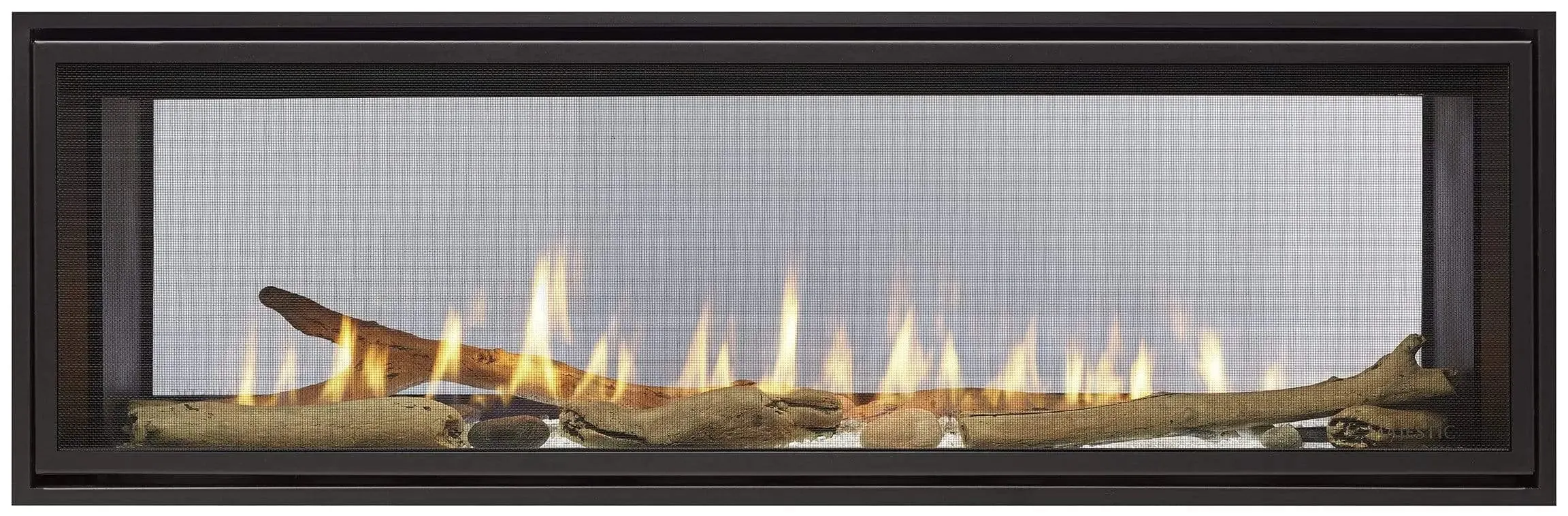

Name: Majestic Echelon II See-Through 48" Direct Vent Gas Fireplace ECHEL48STIN-C
SKU: 454952

Majestic Echelon II See-Through 48" Direct Vent Gas Fireplace ECHEL48STIN-C Review

Are you looking for a majestic gas fireplace? The Majestic Echelon II See-Through 48" Direct Vent Gas Fireplace ECHEL48STIN-C got you! Buy now here at Flame Authority, your Trusted Dealer!

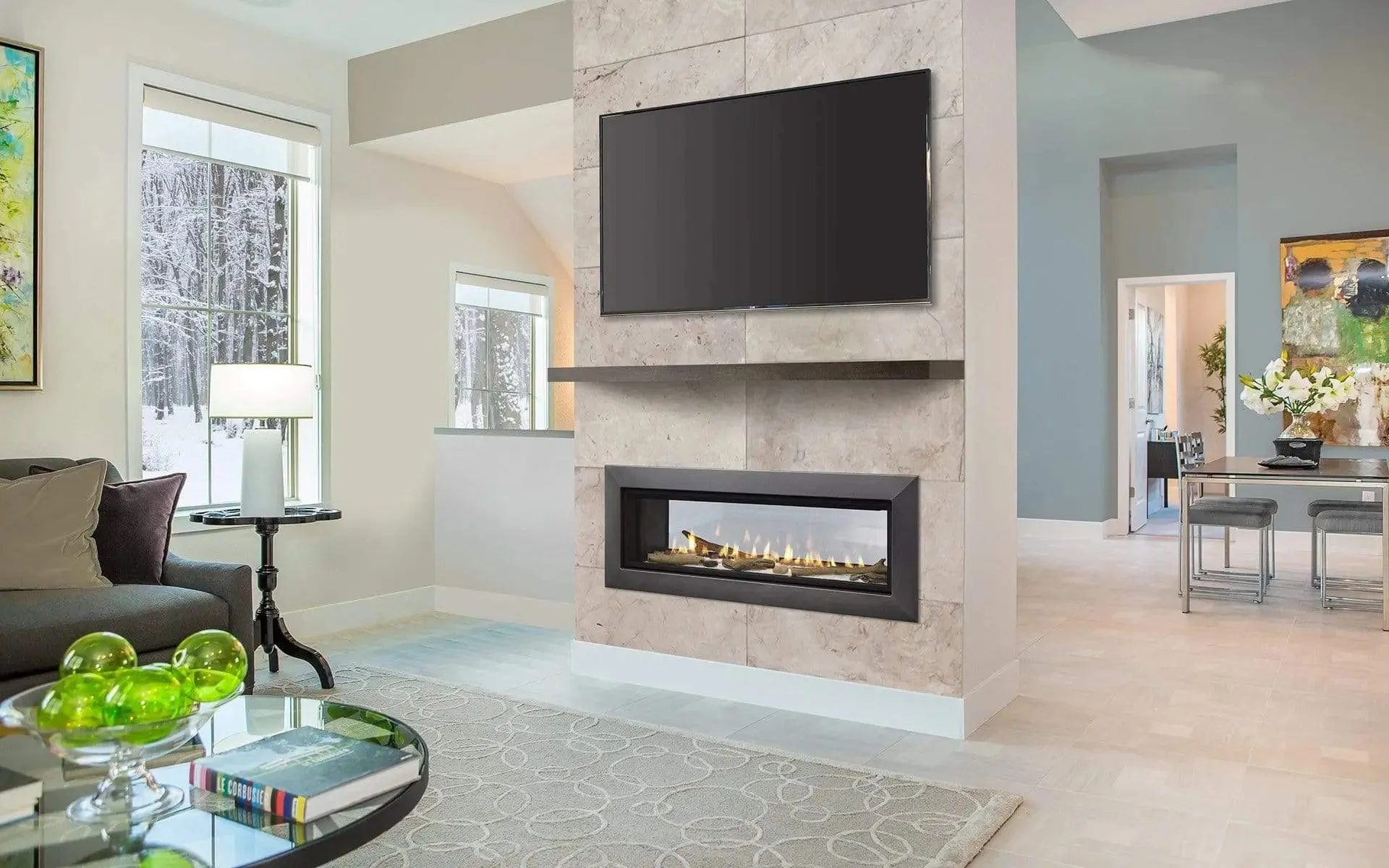

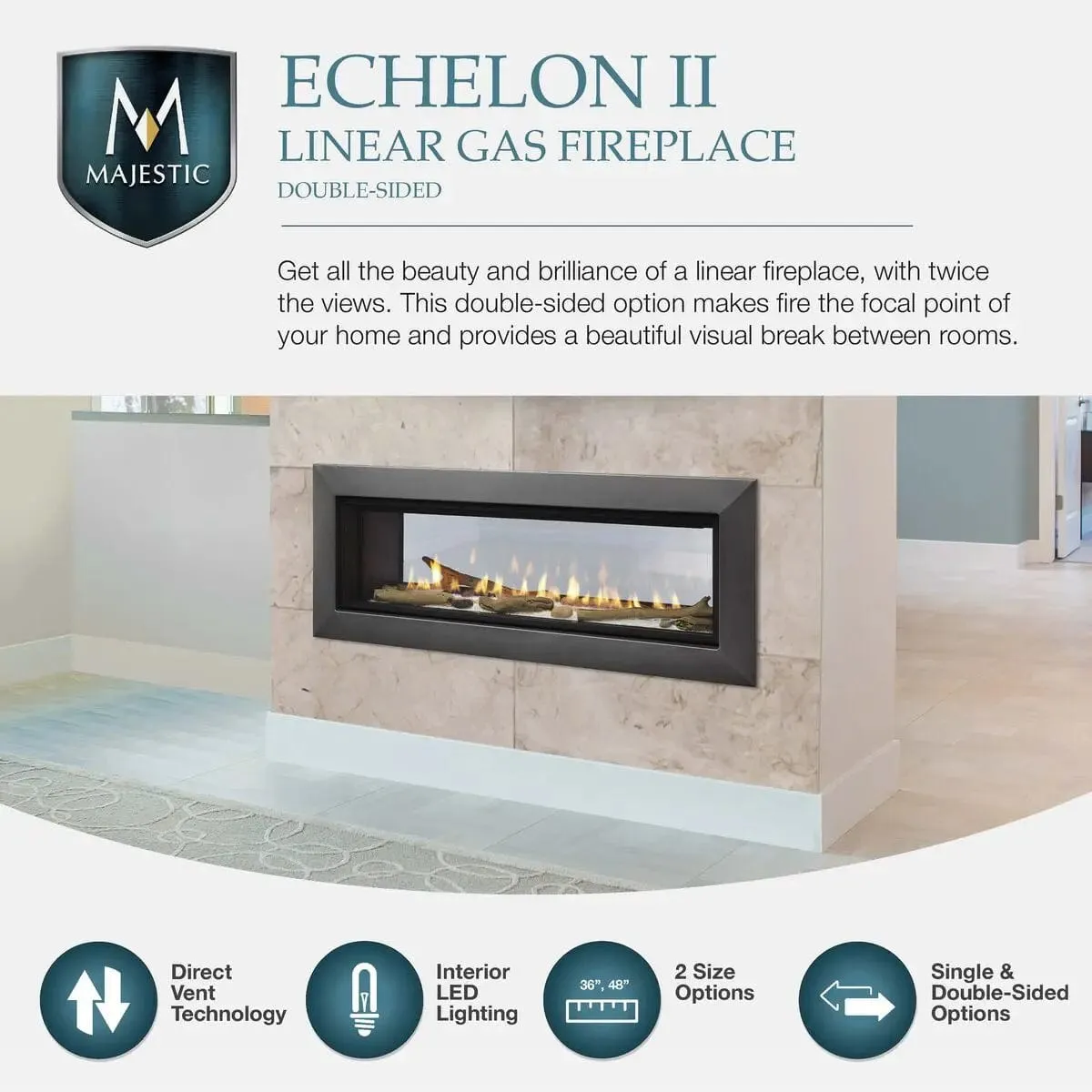

Making memories starts with something special. The exclusive Echelon II series gas fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.

Want a smaller one? Here's the for you. You can also check out other and .

Includes:

21,000 - 40,000 Btu/Hour Input (NG)
20,000 - 34,000 Btu/Hour Input (LP)
IntelliFire Touch ignition system
Clear LED dimmable lights
RC400 remote control
Battery backup
Ceramic glass
Standard with bronze glass media
If changing media, follow the required number of bags below:

Crushed Glass: 4 bags of glass
Natural stones: 3 bags of stone
Log set & stones: 1 bag of stone

Required to Complete (Sold Separately):

2 Fronts

Get your own Majestic Echelon II See-Through 48" Direct Vent Gas Fireplace ECHEL48STIN-C now! Available here at Flame Authority, your Trusted Dealer!

Features

Features:

Showcase the interior with glass illuminated by LED lights
Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone, and glass firebed options
IntelliFire® touchscreen remote comes standard; you can also add the IntelliFire app or wireless wall switch for the solution that fits your life

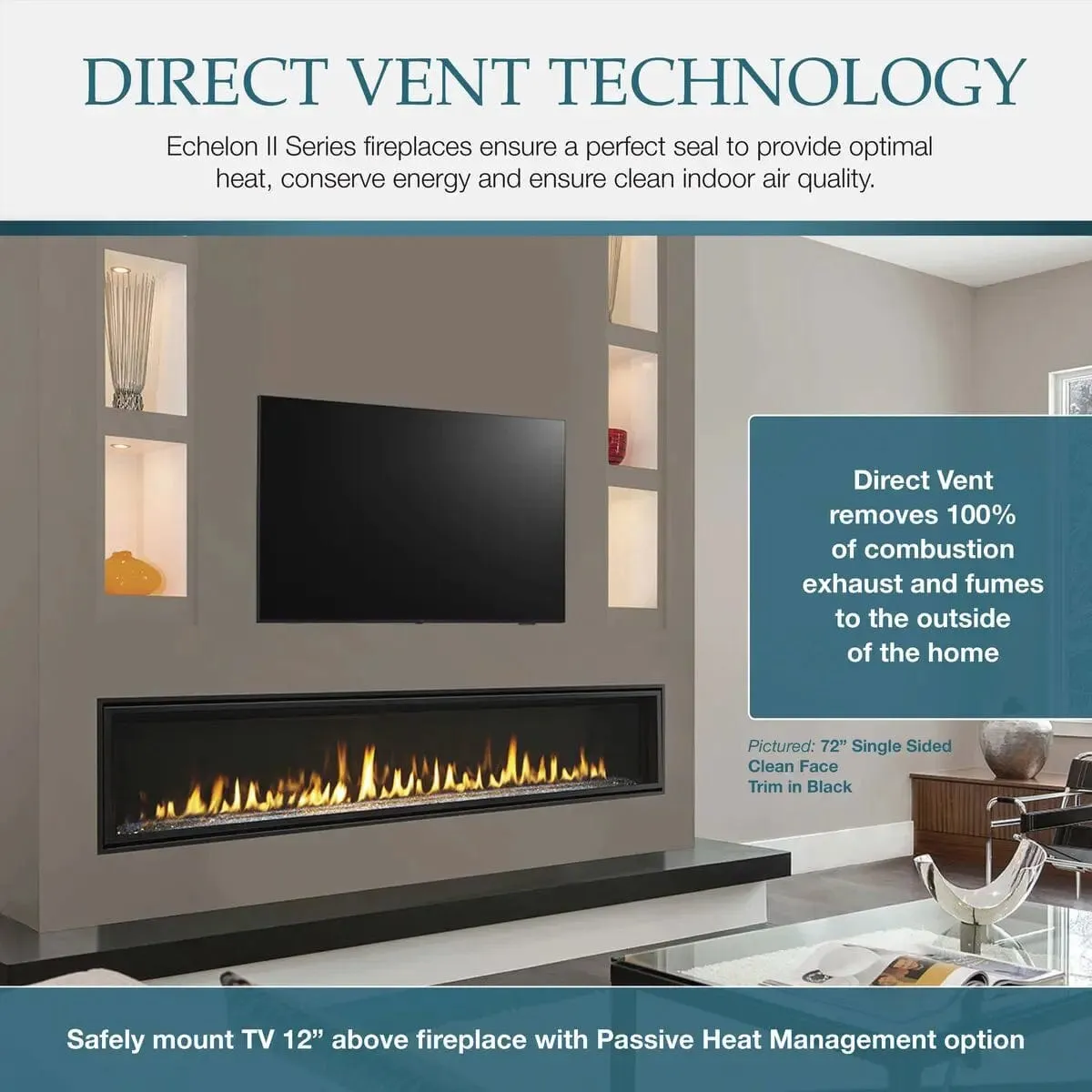

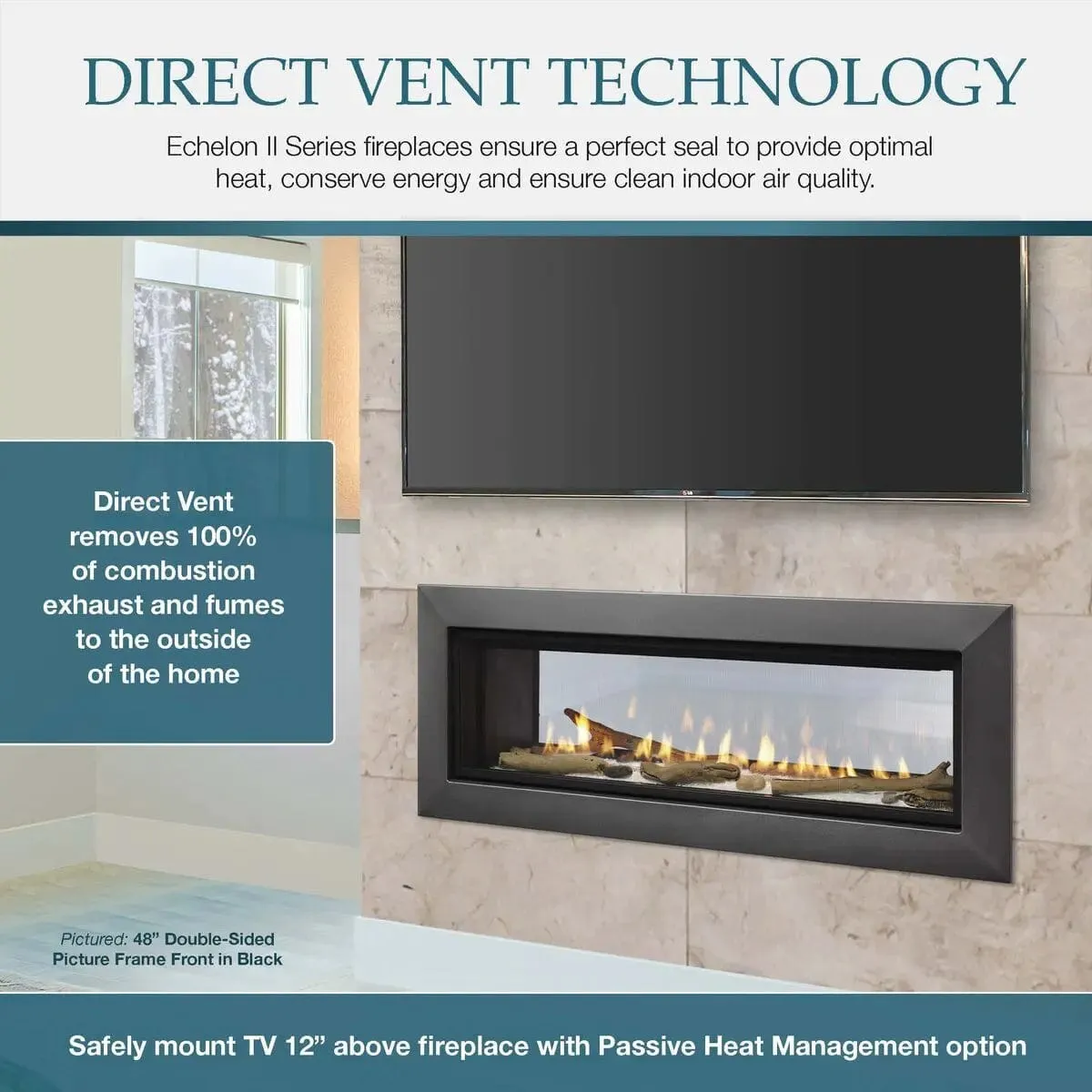

Optional Passive Heat enables a TV or heat-sensitive materials to be placed just 12” above the fireplace opening without a mantel

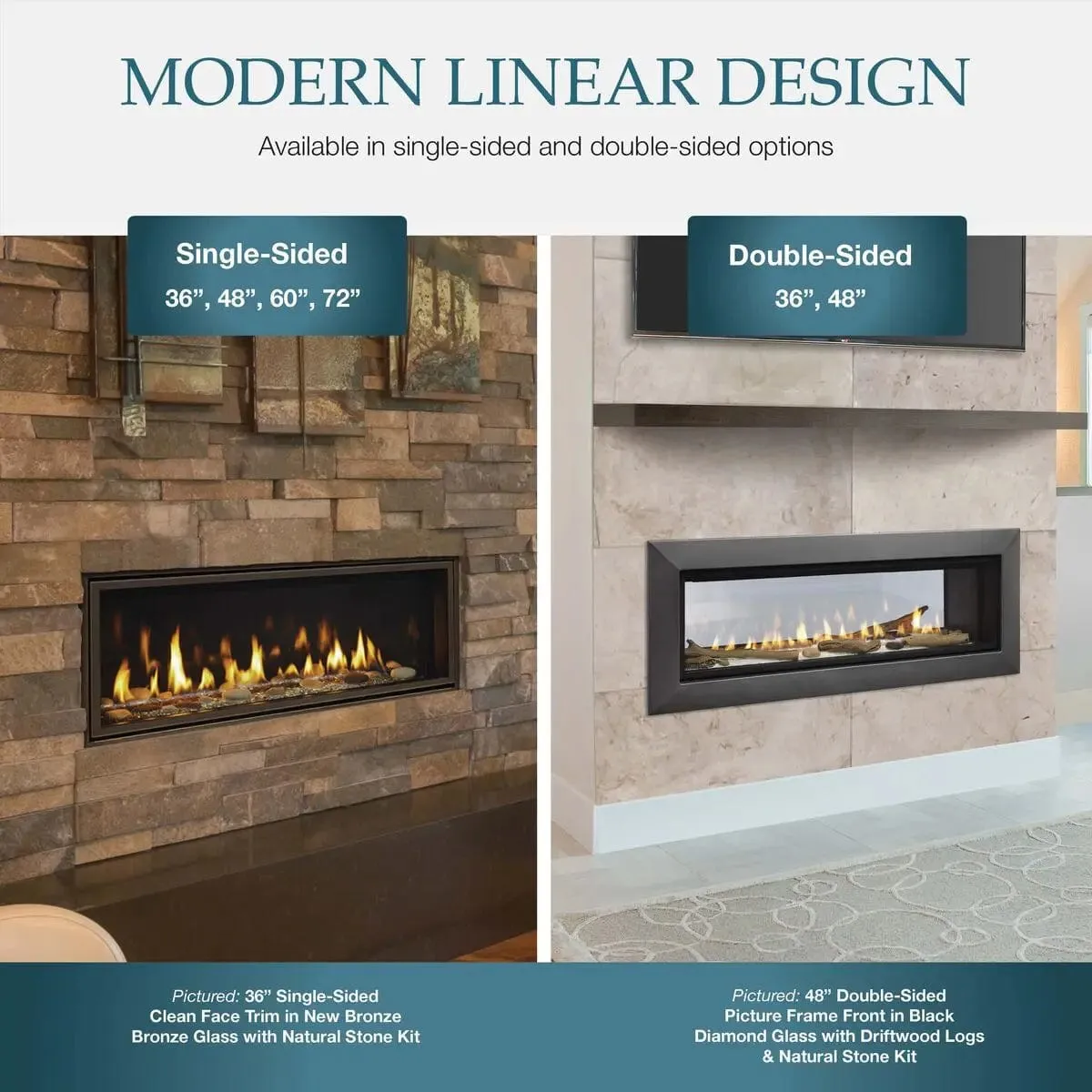

Available in 36” or 48” models
Limited Lifetime Warranty

Manuals and Venting Notes

Manuals:

Venting Notes:

Requires 8" DVP pipe. Must have 30" minimum vertical vent before attaching a 90-degree elbow to the unit. See the venting section of the manual.
Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See the venting section of the manual.

Specifications and Dimensions

Specifications:

Appliance Width: 58"
Appliance Height: 41^3/4"
Appliance Depth¹: 17^1/8"
Appliance Rear Width: 58"
Framing Height: 42"
Framing Depth: 17"
Framing Front Width: 60^1/4"
Framing Back Width: 60^1/4"
Fuel Type: Natural gas or liquid propane by conversion
BTU/hr Input: 40,000 (NG); 34,000 (LP)
Heating Capacity²: Up to 1,300 sq ft
Viewing Area: 47^1/2 x 12^1/2"
AFUE: 48.7% (NG) / 62% (LP)
Canada EnerGuide: 49.8% (NG) / 61.3% (LP)

Dimensions:

Options and Accessories

Clean Face Trim

Light Baffle Kit

Recommended for use when two CFT fronts are being installed.

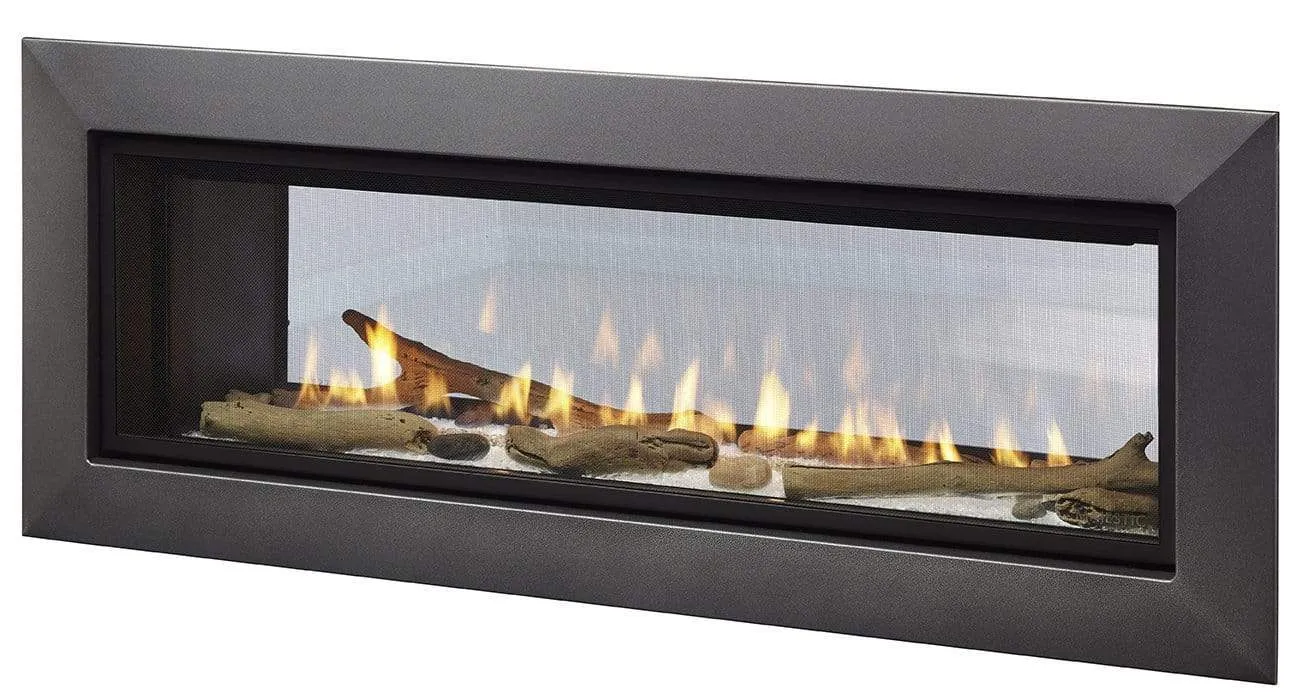

Picture Frame Front

Reflective Black Ceramic Glass Liner Kit

Customize the interior of your fireplace with this alternative style of decorative lining.

Driftwood Log Set

This finely crafted log set brings an organic touch to your fireplace.

Stone Kit

Contemporary stone kits offer an alternative to a log set.
1 lb. bag of natural stone media
Ceramic Fiber Construction

Controls, Remotes, Wall Switches

IntelliFire Wi-Fi Module

Works with the IntelliFire iOS and Android app.
Use to control all the features of your fireplace via a smart device.
An RC400 or RC150 is required for thermostat control

IntelliFire Touch RC400 Remote Control

A large LCD screen and simple navigation provide easy operation. Feel confident knowing alerts and notifications will appear when needed. The RC400 acts as a thermostat and can be used as a remote, or docked on the wall.
Features on/off, flame height adjustment, lights adjustment, thermostat mode, room temperature readout, child lock, timer mode, automatic battery backup, cold climate mode, power vent, and wall-docking station.

IntelliFire Touch RC150 Wireless Wall Switch

Features a simple, single-mode function and is specifically designed for wall placement, ensuring a great fire is just a flip of the switch away.
Features On/Off, Automatic Battery Backup, Battery Strength Indicator, Cold Climate.
