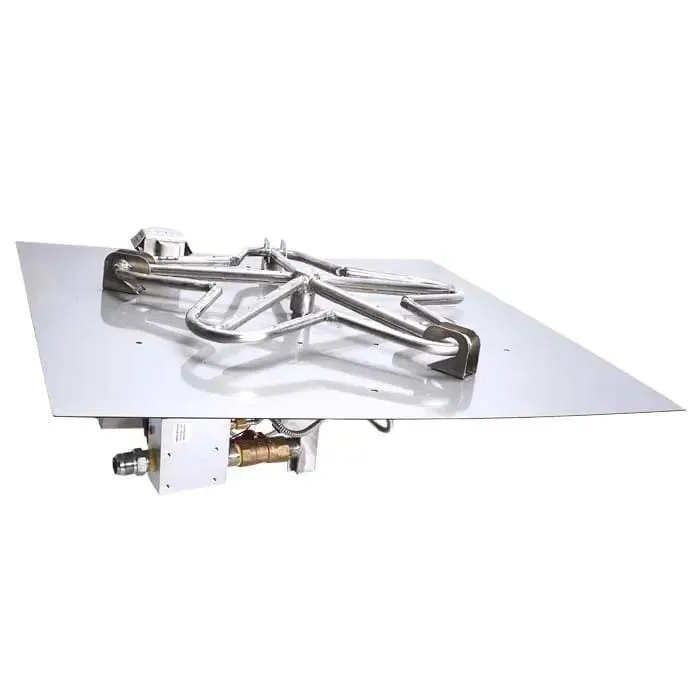

HPC Fire EI Square Flat Pan Gas Fire Kit 24FSSEI-SQ REVIEW

Are you searching for a fully functional Fire Pit that heats up your outdoor living? Buy the HPC Fire EI Square Flat Pan Gas Fire Kit 24FSSEI-SQ now in Flame Authority!

The HPC Fire EI Square Flat Pan Gas Fire Kit 24FSSEI-SQ is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.

The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts the gas valve if the flames get turned off.

There is a sidewall that aids with media retention, Pan Lip provides for the recessed burner and blowout box

How It Works:

• Start-Up: This is done by the use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks and then starts the flow of pilot gas. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow ignited by the pilot flame.
• Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing the Start sequence.
• On/Off Models: Includes the convenience and safety features- optional remote control available.
• Bluetooth High / Low Flame Control Models: This option includes a smart remote and App via smart device control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from the fire pit to advise the user of fire pit status (flashing LED).
• Shut Down: To turn OFF the fire pit simply use a wall switch, remote control, or whole house system.

Purchase the HPC Fire EI Square Flat Pan Gas Fire Kit 24FSSEI-SQ here in Flame Authority!

Features

Features:

• Fully Assembled- ready to install. Control components are protected within the valve box.
• Start via wall switch or remote control; Auto re-light if the flame is lost.
• Ignition is complete using a robust and reliable Hot Surface igniter
• On/Off models: Use with an optional wall switch, Remote Control, or your whole house system
• High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
• 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Internal temperature monitoring with overheat auto shutoff

Manuals

Manuals:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected] to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

• Model:
• 24FSSEI-SQ
• TOR-24FSSEI-SQ
• 24FSSEI-SQ-HI/LO
• TOR-24FSSEI-SQ-HI/LO
• Dimensions: L-24" x W-24"
• Max BTU: 125,000
• Nozzle BTU: 125,000
• Burner Type: 18” Penta Standard / Torpedo
• Gas Type: Natural Gas / Liquid Propane
• Power Options: 120VAC / 24VAC
• Ignition Style: Electronic Ignition On-Off / Hi-Lo (Bluetooth App)
• Required Items: Lava Rock / Rolled Lava Stones ( 2 bags), Flex-Form Install Collar( 2 boxes), Fire Glass ( 70 lbs), River Rock ( 2 boxes )
• Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
• Warranty: Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Outdoor Fire Logs and Rocks:

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

• 2 Bags Required for this unit

Western Driftwood

 Lava Rock

• 2 Bags Required for this unit

Black Ceramic River Rock

• 2 Boxes required for this unit

Fire Glass

• 70 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

Optional Accessories:

• POWER SUPPLIES - FOR 24VAC & 12VAC MODELS
• Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A

• 120 VAC Outdoor On/Off Remote Control
• Used with EI Fire Pit Systems
• CARLON in-line power control with 3 prongs in/out

• Stainless Steel Rotary Timer
• Available in 2 and 12-hour timer
• 1/2” deep. Double gang box recommended.

• Rotary Timer with NEMA Box
• Available in 2 and 12-hour timer
• NEMA 3R Box with 694 or 695 timer
• Includes timer mounted into the NEMA 3R box for your convenience

• Commercial Emergency Stop
• Push-button with keyed reset allows supervisor confirmation.
• Safely turns off up to 3 circuits plus one fail-safe function.
